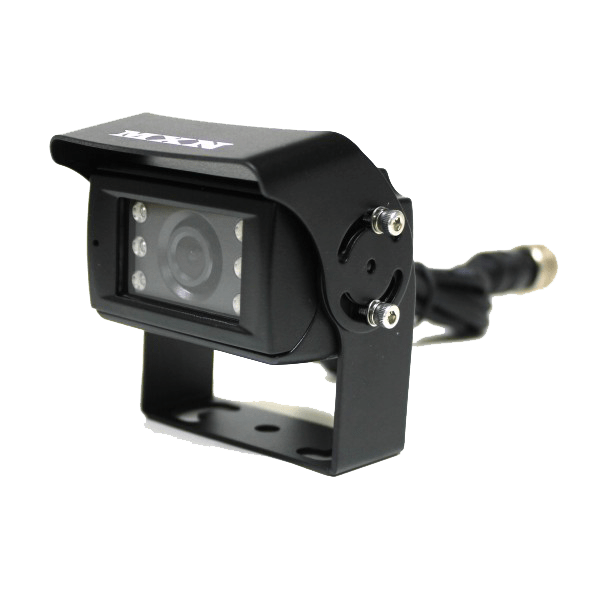

MXN 35C Camera PAL normaal/mirror IR led 130°
- Best picture quality (in combination with Digital LCD monitor)
- High resolution CCD camera (470,000 pixels)
- 1/3” Color CCD high resolution image sensor
- IP68 Waterproof Rating
- Diagonal 130˚ Viewing
- Adjustable Mirror/Normal Image
- Ultra low light performance
- Automatic Electronic Iris
- Built-in Microphone
- Built-in IR LED’s
- Temp. -30˚C ~ 80˚C
- Vibration resistant
- Aluminum die-cast housing
- Anti-corrosive, chromate coating
- Waterproof screw type connector (IP67), 4-pin mini-DIN
Image Sensor 1/3” Color SONY SUPER HAD II CCD
Scanning System PAL 470,000 pixels
Resolution 520 TV Lines
S/N ratio Better than 50dB (at AGC off)
Minimum Illumination 0 lux (IR LED’s on)
Power supply DC 9 ~ 24V
Power Consumption DC 9V, 170mA
DC 24V, 60mA
Operating Temperature -30˚C to +80˚C
Field of View angle 130˚ (Diagonal), 110˚ (Horizontal), 81˚ (Vertical)
Dimension 72(W) x 77(H) x 50(D) mm
Weight 205g (total weight incl. bracket & sunvisor: 312g)
Accessoiremerk | MXN |
---|---|
Barcode | 8809338840430 |
Adviesverkoopprijs incl. BTW | 235,00 |
Camera eigenschap | Infrarood, IP genormeerd, Normaal beeld, Spiegelbeeld |
Camera montage | Opbouw |
Camera video systeem | PAL - EU 50 Hz 25 fps |
Camera connector | MXN 4-PIN connector |
Camera lens type | CCD (Sony) |
Camera kijkhoek | 130° |
Voltage | 12/24V geschikt |
Aanvullend product benodigd | Kies de gewenste verleng- of verloopkabel via het verwante producten tabblad. Een monitor completeert de installatie |
Product geschikt voor info | Bij het tabblad Compatibility checkt u de auto's die geschikt zijn voor deze camera |
Veiligheid (productinfo) | Het gebruik van een camera(systeem) biedt een optimale veiligheid, u heeft beter (in)zicht in wat er zich rondom uw auto bevindt en u kunt daardoor ongelukjes en schade voorkomen. |
