Brodit houder Universeel Tablet 190-230mm/ 35mm AMPS/VESA 75

Artikelnummer
216407
Op voorraad
€ 174,95
-
+
Gegevens

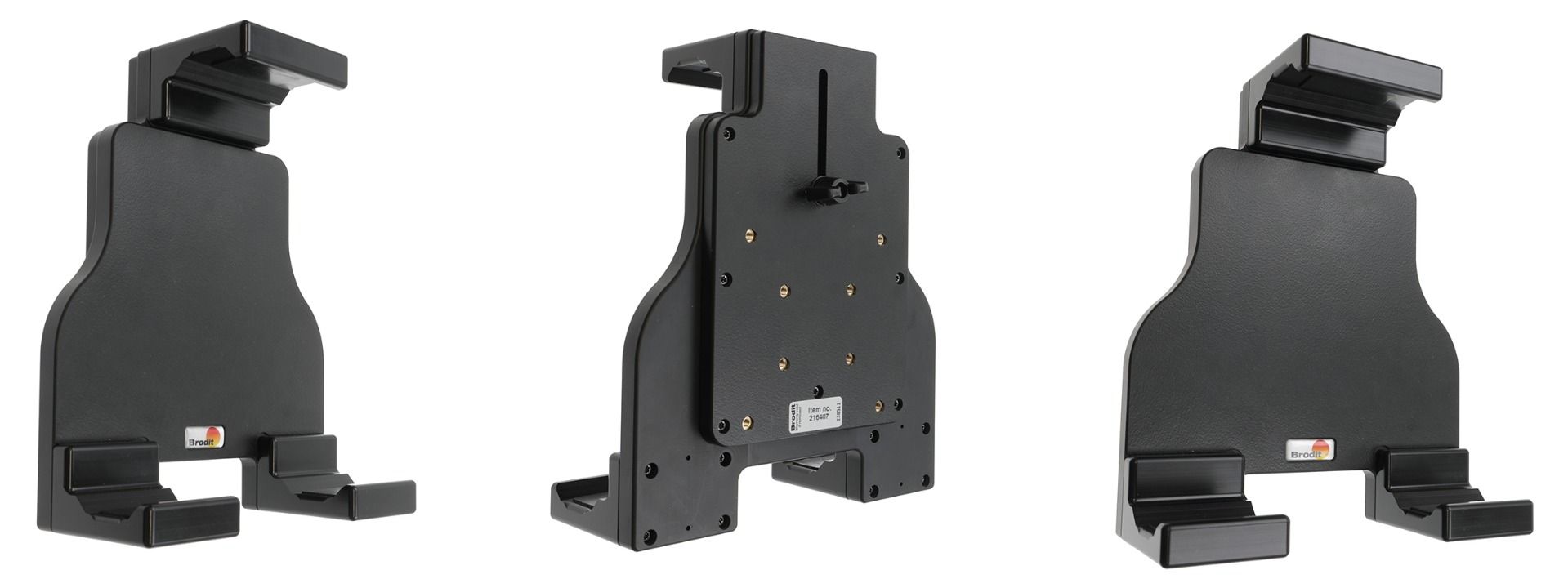

Passive holder

Adjustable holder. Fits devices with or without skin/case, with height 190-230 mm, max thickness 35 mm. With AMPS, VESA 75 holes.

Adjustable passive holder with tilt swivel for devices with or without skin/case. Keep your device in a holder in your car and you will always have it within easy sight and reach. Safe, neat and convenient! Measure your device/skin/case and compare with the holder specifications to choose the right product for you. This holder fits for devices with or without skin/case with the height 190-230 mm and maximum thickness 35 mm.



Attach the cradle onto an Pedestal Mount in a forklift, truck, distribution vehicle, warehouse, table top etc. With 4 mm AMPS and 4 mm VESA 75 standard holes. Made of high grade ABS-, Acetal-plastic. Color: Black. Made in Sweden.



Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.

Meer informatie
Meer informatie
Accessoiremerk Brodit
Barcode 7320282164072
Adviesverkoopprijs incl. BTW 174,95
Houder voor Tablet
Aansluiting Passief
Toestel houder kenmerk Universeel en verstelbaar
Toestel houder breedte / hoogte 190-230 mm
Toestel houder diepte / dikte max 35 mm
Toestel houder aflsuitbaar? nee
Kleur.. Zwart
Productinfo Professionele houder met draaimechaniek voor uw smartphone, navigatiesysteem of tablet. Hinderlijke reflectie behoort tot het verleden door het aanpassen van de invalshoek
Reviews
Schrijf uw eigen review
U plaatst een review over:Brodit houder Universeel Tablet 190-230mm/ 35mm AMPS/VESA 75
Compatibility
Gerelateerde producten
Instructies

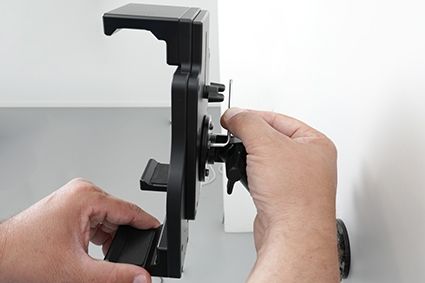

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
3. To place the device in the holder: Place the upper part of the device under the upper part of the holder. Press upward so the upper part of the holder slides upwards. Press the lower part of the device forward so the device is placed straight in the holder. Stop pressing upward so the upper part of the holder slides downward and rests on the device. Press downwards HARD on top of the holder, in the same time tighten the wingnut on the back of the holder FIRMLY. IMPORTANT: It is very important to press downward HARD on top of the holder and to tighten the wingnut FIRMLY so the device is properly held in place in the holder.
4. The holder is in place.
