Brodit houder/lader Pan.Toughbook FZ-L1 USB Host fixed inst.

Artikelnummer
713102
Niet op voorraad
€ 139,95
-
+
Gegevens

Brodit houder/lader Pan.Toughbook FZ-L1 USB Host fixed inst.

With tilt swivel and USB Host.

Use an active holder for your unit while driving and you will always have a freshly charged battery! The active holder is to be connected inside the dashboard. It provides a discreet and neat installation without any cables hanging over the interior. Safe and convenient! 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Charging via pogo plug. Professional installation recommended.

Easy-switching system:

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired position. It is easy to put the unit into place in the holder, and to take it with you when leaving the car.

Tablets (Surfpads) should not be installed onto a car’s dashboard if they block the view or block key controls. ProClip (Brodit’s vehicle mounting bracket) is designed for installation of smaller devices like mobile phones and GPS devices, ProClip is not designed for large devices like tablets. In some vehicles the ProClip has an extra firm fit and can then be used also for installation of a tablet. If you want to place a tablet onto the car’s dashboard, each combination of tablet-car must be examined in detail by you in order to determine if such an installation is possible in the specific case. Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.

An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on the car’s headrest, installed onto a Brodit headrest mount.

  • Width: 213 mm
  • Height: 155 mm
  • Depth: 57 mm
  • Volume: 1882 cm³
  • Weight: 466 g
Meer informatie
Meer informatie
Accessoiremerk Brodit
Barcode 7320287131024
Adviesverkoopprijs incl. BTW 138,95
Houder voor PDA
Aansluiting Vaste inbouw
Toestel houder kenmerk Toestelspecifiek
Toestel houder aflsuitbaar? nee
Productinfo Professionele houder met draaimechaniek voor uw smartphone, navigatiesysteem of tablet. Hinderlijke reflectie behoort tot het verleden door het aanpassen van de invalshoek
Veiligheid (productinfo) Deze Brodit houder biedt extra veiligheid, het voorkomt dat uw toestel bij een plotselinge manoeuvre een projectiel wordt of onder uw pedalen komt..
Productinstallatie Monteer de houder op een ProClip in uw voertuig. Een uitgebreide montagehandleiding zit in de productverpakking
Product geschikt voor info Bij het tabblad Compatibility List checkt u of smartphone, navigatiesysteem of tablet geschikt is voor deze houder
productgroep houder/ lader vaste installatie
Reviews
Schrijf uw eigen review
U plaatst een review over:Brodit houder/lader Pan.Toughbook FZ-L1 USB Host fixed inst.
Compatibility
Instructies

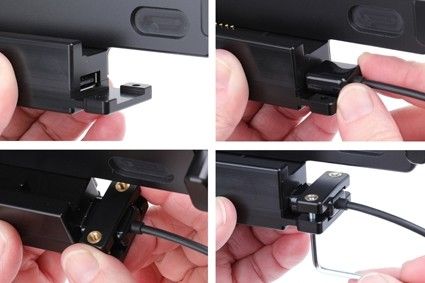

Please read all of the instructions and look at the pictures before attaching the holder. Important Note: Route the cable from the holder into the vehicle dashboard and route the power cable from the charger unit to the power supply source in the vehicle and connect as follows: 1. Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle. Installation of the holder: 1. Connect device via USB Host. Press the cable into the socket, place the cable socket over the pre-drilled holes, screw the cable socket with the enclosed screws.
2. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
3. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forwards so it snaps into place in the holder. To remove the device from the holder: Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.
4. The holder is in place.
