Brodit houder/lader Point Mobile PM85 fixed installation

Artikelnummer
713119
Niet op voorraad
€ 104,95
-
+
Gegevens

Brodit houder/lader Point Mobile PM85 fixed installation

With tilt swivel. 3A charging. 12/24V. Only for standard battery.

An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior!

You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the Molex connector for additional features. Then you can use the holder also for power supply of a GPS receiver or other own solutions (can not be used for data communication or audio connection). 12/24 Volt. The product is E-approved. Connect the power cable with a 3 A fuse. 3 A charger.  Professional installation recommended.

Easy-switching system:

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Connect the power cable with a 3A fuse. Professional installation recommended. Attach onto ProClip Mounting Platform.

Charging specification:

Charging specifications:

Input voltage: DC/10-30V

Charging voltage: DC/4.75-5.3V

Output current(Typ): 2.0A

Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection

LED charging indicator: Power input indicator(Green), Ovp/Ocp/Output short(Red)

Operating temperature: 0°C ~ +40°C

Storage temperature: -20°C ~ +80°C

RoHS compliant: ROHS

  • Width: 94 mm
  • Height: 99 mm
  • Depth: 68 mm
  • Volume: 633 cm³
  • Weight: 242 g
Meer informatie
Meer informatie
Accessoiremerk Brodit
Barcode 7320287131192
Adviesverkoopprijs incl. BTW 104,95
Houder voor PDA
Aansluiting Vaste inbouw
Toestel houder kenmerk Toestelspecifiek
Toestel houder aflsuitbaar? nee
Productinfo Professionele houder met draaimechaniek voor uw smartphone, navigatiesysteem of tablet. Hinderlijke reflectie behoort tot het verleden door het aanpassen van de invalshoek
Veiligheid (productinfo) Deze Brodit houder biedt extra veiligheid, het voorkomt dat uw toestel bij een plotselinge manoeuvre een projectiel wordt of onder uw pedalen komt..
Productinstallatie Monteer de houder op een ProClip in uw voertuig. Een uitgebreide montagehandleiding zit in de productverpakking
Product geschikt voor info Bij het tabblad Compatibility List checkt u of smartphone, navigatiesysteem of tablet geschikt is voor deze houder
productgroep houder/ lader vaste installatie
Reviews
Schrijf uw eigen review
U plaatst een review over:Brodit houder/lader Point Mobile PM85 fixed installation
Compatibility
Instructies

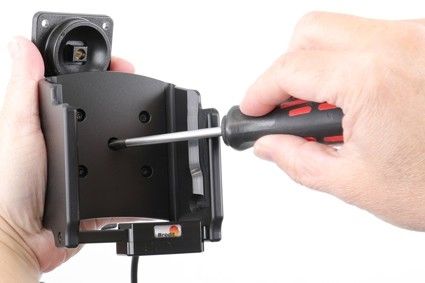

Please read all of the instructions and look at the pictures before attaching the holder. Important Note: The charger unit is fused internally with 2 A automotive re-settable thermal fuse, but if an external fuse is to be installed then connect a 2 A fuse holder and fuse inline with the Red wire close to the power source. Route the cable from the holder into the vehicle dashboard and secure the charger unit in place. Ensure the charger unit is securely mounted behind the dashboard in a well ventilated area that does not get hot! Route the power cable from the charger unit to the power supply source in the vehicle and connect as follows: 1. Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle. Installation of the holder: 1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back
2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel.
3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted
4. The holder is in place.
