Brodit h/l Tablet verstelb.180-230mm USB-C fixed instal.

Artikelnummer
727072
Op voorraad
€ 125,95
-
+
Gegevens

Brodit h/l Tablet verstelb.180-230mm USB-C fixed instal.

Adjustable holder. USB Type C. With tilt swivel and fly lead. Fits devices with or without skin/case, with height 180-230 mm, max thickness 25 mm.

This holder is crash tested and approved for use with device without skin/case on Brodit's headrest mount.

Measure your device/skin/case and compare with specifications. Fits for devices with/without skin/case with height 180-230 mm, max thickness 25 mm. For use with devices with USB Type C connector.

For connection inside the dashboard, no cables hanging over the interior. With fly lead, you manually connect the charging cable to the device when needed (not automatic charging when placed in holder). With tilt swivel. Tilts 20°, swivels 360°. Padded cushions for protection against sliding/scratching. Mounting plate 42x50 mm with predrilled AMPS-holes +2x3,5 mm centered holes. Connect the power cable with a 2A fuse. Professional installation recommended. Made of high grade black ABS/Acetal plastic. Made in Sweden

Crash tested:

This adjustable holder is crash tested according to standard for car seats (ECE R17). The crash test applies for a tablet that weighs 490 g. The tests have been performed on one seat with invisible headrest pins (type Volvo etc.) and one seat with visible headrest pins (type Ford etc.) in the forward and rearward directions. The adjustable holder keeps the tablet in place during all executed tests.

Important information:

Tablets should not be installed onto a car’s dashboard. They may block the view or key controls and the ProClip is designed for installation of smaller devices (phones), not for large devices (tablets). Brodit will not give any recommendations for such installations. An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets in a holder on the car’s headrest, installed onto a Brodit headrest mount.

This product supports Qualcomm QC 2.0 quick charge (provided the device supports Qualcomm QC 2.0 quick charge).

Charging specification:

Cable length: Total length: 400 cm (Connector to box: 145 cm, Box 8 cm, Box to open end: 243 cm.)

  • Width: 164 mm
  • Height: 188 mm
  • Depth: 69 mm
  • Volume: 2127 cm³
  • Weight: 335 g
Meer informatie
Meer informatie
Accessoiremerk Brodit
Barcode 7320287270723
Adviesverkoopprijs incl. BTW 125,95
Houder voor Tablet
Aansluiting Vaste inbouw
Toestel houder kenmerk Universeel en verstelbaar, Verstelbaar met USB-C
Toestel houder breedte / hoogte 180-230 mm
Toestel houder diepte / dikte max 25 mm
Toestel houder aflsuitbaar? nee
Productinfo Professionele houder met draaimechaniek voor uw smartphone, navigatiesysteem of tablet. Hinderlijke reflectie behoort tot het verleden door het aanpassen van de invalshoek
Veiligheid (productinfo) Deze Brodit houder biedt extra veiligheid, het voorkomt dat uw toestel bij een plotselinge manoeuvre een projectiel wordt of onder uw pedalen komt..
Productinstallatie Monteer de houder op een ProClip in uw voertuig. Een uitgebreide montagehandleiding zit in de productverpakking
Product geschikt voor info Bij het tabblad Compatibility List checkt u of smartphone, navigatiesysteem of tablet geschikt is voor deze houder
productgroep houder/ lader vaste installatie
Reviews
Schrijf uw eigen review
U plaatst een review over:Brodit h/l Tablet verstelb.180-230mm USB-C fixed instal.
Compatibility
Instructies

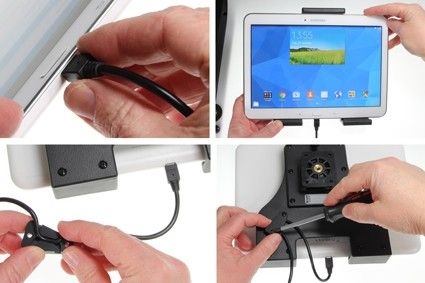

1. Read all of the instructions before attaching the holder. Important Note: The charger unit is fused internally with 2 A automotive re-settable thermal fuse, but if an external fuse is to be installed then connect a 2 A fuse holder and fuse inline with the Red wire close to the power source. Ensure the charger unit is securely mounted behind the dashboard in a well ventilated area! Route the power cable from the charger unit to the power supply source in the vehicle and connect as follows: 1. Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle. How to mount the holder: 1. Use your phone to determine in what direction the charging connector should be placed in the holder. Place the charging connector into the locking block. Place the locking block onto its position on the front of the holder. Turn the holder around and screw the locking block into place using the enclosed screws.
2. To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holders can be adjusted. Place the device in the holder and press the sides together so the device is firmly in place. Remove the device carefully. Tighten the screws on the front side of the holder.
3. To install the holder: Loosen the screw in the center of the holder removing the tilt swivel attaching plate on the back. Screw the attaching plate onto desired position with the enclosed screws. Place the holder over the attaching plate. Screw a few turns on the screw, so the thread starts to pull. Pull the holder toward you and hold it slightly tensed, in the same time tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.
4. The holder is in place.
